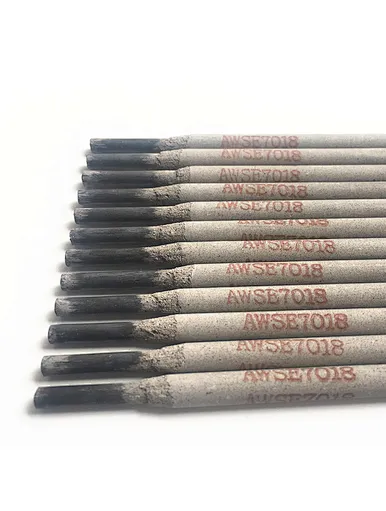

general purpose n-7018 1/8 3.2mm 4mm length 450mm hero soldaduras aws 7018 6nos e 7018 welding rod electrodes for carbon steel
price
$46.00 - $50.00 / kilogram
E7018
1 kilogram
Quantity
- Warranty:3 years
- Customized support:OEM, ODM, OBM
- Place of Origin:Hebei, China
- Brand Name:JINYUAN
- Model Number:E7018
- Material:STEEL ALLOY
- Operating Current:60-250A
- Welding Current:60-250A
- Operating Temperature:NORMAL TEMPRETURE
- Application:carbon steel, low alloy steel structure
- Certification:ISO9001:2015
J506Fe AWS E7018 WELDING ELECTRODE
Product Details
Characteristics:
E7018 welding electrode is basic potassium-ron powder type electrode with low hydrogen.Both AC DC
can be used and can be weld for all-position.It have excellent welding performance as good
arc stiffness,little spatter,easy slag removal etc.,and higher deposition efficiency.
can be used and can be weld for all-position.It have excellent welding performance as good
arc stiffness,little spatter,easy slag removal etc.,and higher deposition efficiency.
Specification
Chemical Composition of All Weld Metal: (Wt.%)
Items | C | Mn | Si | S | P | Ni | Cr | Mo | V |
Requirements | ≤0.10 | 0.85-1.40 | ≤0.65 | ≤0.030 | ≤0.035 | ≤0.30 | ≤0.20 | ≤0.30 | ≤0.08 |
Typical Results | 0.06 | 1.00 | 0.30 | 0.015 | 0.020 | 0.030 | 0.035 | 0.005 | 0.004 |
Mechanical Properties of All Weld Metal
Items | Rm/MPa | Rel/Rp0.2/Mpa | A/% | KV2 (-30℃)/J |
Requirements | 490-660 | ≥400 | ≥22 | ≥80 |
Typical Results | 590 | 480 | 28 | 160 |
X-ray Radiographic Inspeciton:
Level Ⅰ
Typical Operating Procedures: (AC or DC)
diameter | length | electric current |
2.5mm | 300mm | 60-100A |
3.2mm | 350mm | 100-150A |
4.0mm | 400mm | 170-210A |
5.0mm | 400mm | 210-250A |
Attention:
1.The electrode must be re-dry by 350C-380C for 1 hour before welding.
2.The rust,oil,water and other impurities of the weld area must be removed before welding.
Applications:
It is suitable for the welding of carbon steel and low alloy steel structure,such as Gr.50,and
so on.
so on.
